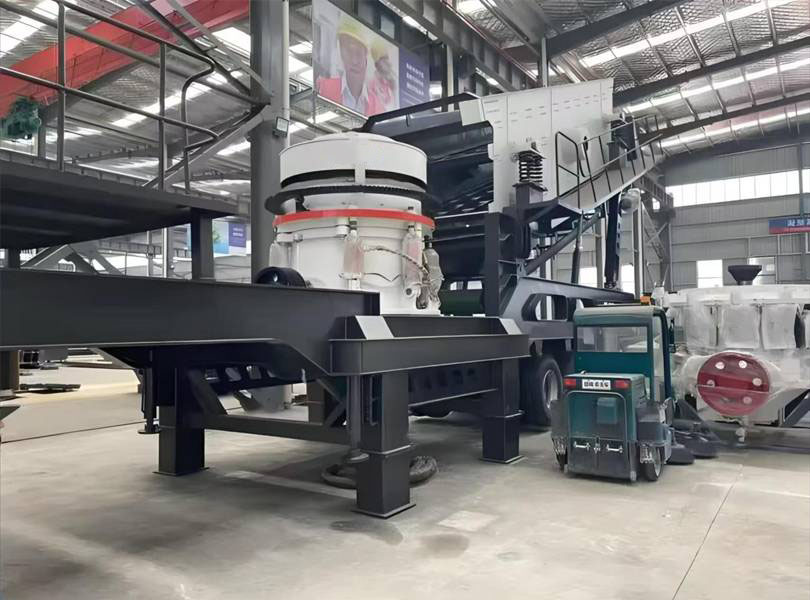

Tyre Mobile Cone Crushing Plant

Tyre mobile cone crusher is a mobile mining crushing equipment that integrates crushing, screening and conveying functions. It adopts tire chassis to achieve fast transfer and flexible operation. It is specially designed for medium and fine crushing of medium-hard and above materials (such as granite, basalt, iron ore, etc.), and is widely used in construction waste treatment, mining, road construction and other fields.

Technical Features

1. High mobility

• The tire chassis supports road traction and can be quickly transferred without disassembly, making it suitable for switching between multiple construction sites or temporary projects.

• The hydraulic folding design simplifies transportation and reduces logistics costs.

2. High efficiency crushing capacity

• Adopt multi-cylinder hydraulic cone crusher and lamination crushing principle to improve the yield and reduce needle-like particles.

• Driven by high-power motor or diesel engine, suitable for operation in an environment without electricity (diesel-powered model).

3. Intelligent Control

• Equipped with PLC automation system, it can monitor the equipment operation status (such as temperature, pressure, current) in real time and automatically alarm in case of failure.

• Remote control support reduces manual intervention.

4. Energy saving and environmental protection

• The cavity design is optimized to reduce energy consumption, and some models are equipped with energy recovery systems.

• The closed structure is combined with a dust removal device to reduce dust spillage.

5. Modular configuration

• Different types of cone crushers (such as single-cylinder and multi-cylinder), feeders and screeners can be selected to meet diverse needs.

• Support the formation of joint production line with mobile jaw crusher, impact crusher, etc.

6. Strong adaptability

• It can process hard rock with compressive strength ≤350MPa and adapt to complex working conditions (such as high altitude and low temperature environment).

• Compact structure design, suitable for operation in narrow spaces.

Application Scenario

• Recycling of construction waste: crushing concrete and bricks on site to generate recycled aggregates.

• Mining: Crushing ore directly near the mountain to reduce transportation costs.

• Road construction: crush roadbed materials on site to quickly advance the project progress.

• Sand and gravel aggregate production: flexibly adjust production line configuration to adapt to changes in market demand.

Comparative Advantages

• vs. Fixed Crushing Station: Saves time on infrastructure construction and quick return on investment.

• vs crawler mobile crusher: Tire type has lower cost and is suitable for flat sites; crawler type is suitable for rugged terrain but has a higher price.

• Tyre mobile cone crusher has become one of the core equipment in the field of modern sand and gravel aggregate production and resource recycling due to its flexibility, high efficiency and intelligence.

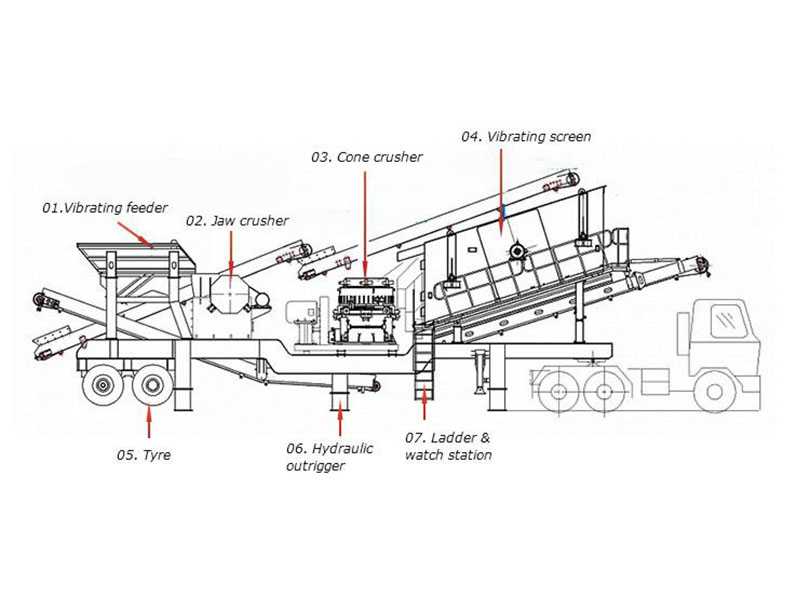

1.Feeding and crushing

The material is evenly fed into the cone crusher cavity through the vibrating feeder. The movable cone is driven by the eccentric sleeve to perform a rotary pendulum motion, forming a periodic extrusion and grinding effect with the fixed cone to crush the material to the target particle size.

2.Screening and output

The crushed materials are classified by particle size through a screening system (such as a multi-layer vibrating screen). Qualified products are output through a belt conveyor, and oversized materials are returned to the crushing chamber for recycling.

3.Move and adjust

The equipment is towed by a tire chassis or moves on its own, and the hydraulic outriggers ensure stable operation; the crusher parameters (such as the size of the discharge opening) can be quickly adjusted through the hydraulic system.

VK Mobile Cone Crushing Station (Transportation Size)
Model	VK55RS	VK110RS	VK160RS	VK250RS
Length（mm）	11200	11800	14500	15000
Width（mm）	2743	2743	3000	3000
Height（mm）	4200	4200	4400	4500
Axle Qty	2	2	2	3
Weight （ton）	/	/	35	49
Cone Crusher
Model	PYB900	PSG110	PSG160/HP200/HP430	HP300/CH440/GP300
Feeding size（mm）	< = 160	< = 180	< = 300	< =300
Discharge adjusting range（mm）	22-32	22-32	26-51	26-51
Vibrating Screen
Model	3YKR1548	3YKR1848	3YKR1860	3YKR2160
Main Belt Conveyor 1#
Model	/	/	B650×7	B650×7
Side Stacking Belt Conveyor2#
Model	/	/	B650×7	B650×7
Stacking Belt Conveyor 3# Under vibrating screen
Model	/	/	B800×7	B800×9
Note: Product models, parameters , appearance, etc . are constantly being improved. If any modifications cause differences please refer to the actual product received.
