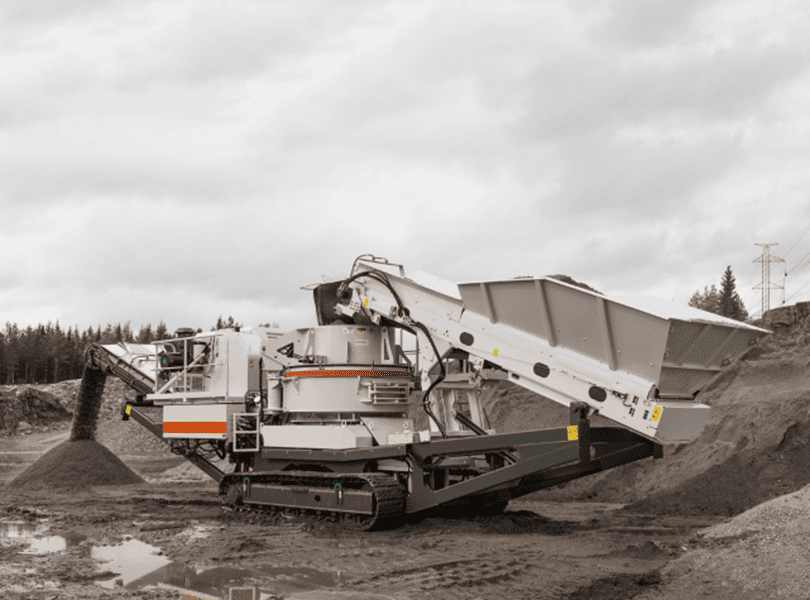

Tracked Mobile Sand Making Plant

Tracked Mobile Sand Making Plant is a mobile sand making equipment that integrates crushing, screening and conveying functions. It is driven by a crawler chassis and can be flexibly transferred to other locations without external power.

It is widely used in mining, construction waste disposal, road construction and other fields, and is especially suitable for construction scenes with complex terrain or requiring frequent movement.

Technical Features

1. High mobility

• The tracked chassis adapts to rough terrain and eliminates the need for a transport vehicle, saving time and costs.

• Supports “on-site crushing” to reduce energy consumption in material handling.

2. Intelligent control

• Equipped with a PLC touch screen system to monitor equipment status (such as current, temperature, and output) in real time.

• Remote diagnostics function quickly troubleshoots faults and reduces the risk of downtime.

3. Environmentally friendly and energy-saving design

• The closed structure is equipped with dust removal and noise reduction devices (such as sprinkler system and sound insulation layer) to meet environmental protection standards.

• Optimize power matching and reduce fuel consumption by 15%-30% compared with traditional equipment.

4. Modular Integration

• The crusher, screener, conveyor belt and other modules are compactly arranged for easy maintenance.

• Supports quick replacement of accessories (such as screens, hammers) to meet different production needs.

5. Multifunctional adaptability

• It can process a variety of raw materials such as granite, basalt, construction waste, etc., and the output particle size is adjustable (0-5mm fine sand to 10-30mm crushed stone).

• Different crushing machines (such as cone crusher and jaw crusher) can be selected to meet diverse production scenarios.

Application Advantages

• Reduce operating costs: Save the capital construction costs of fixed production lines, suitable for short-term or decentralized projects.

• Improved quality of finished products: The impact crushing process ensures that the sand particles are cubic and well graded, suitable for high-standard concrete.

• Quick response to demand: The daily processing capacity of a single device can reach 50-500 tons, and the production scale can be flexibly adjusted.

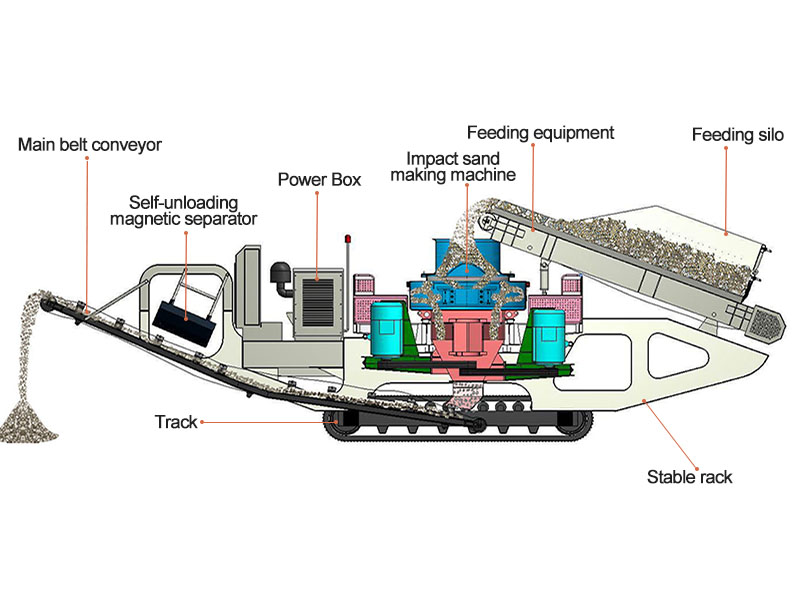

1. Feeding system

The raw materials are evenly fed into the crushing chamber through a vibrating feeder to avoid blockage or overloading.

2. Crushing stage

The core adopts impact crusher (or vertical shaft sand making machine), which ejects materials through high-speed rotating impeller, and uses the principle of "stone hitting stone" or "stone hitting iron" to achieve efficient crushing and shaping, and produce sand and gravel with excellent particle shape.

3. Screening and circulation

The crushed materials are classified by multi-layer vibrating screens, qualified sand particles enter the finished product pile, and oversized materials return to the crusher for secondary processing, forming a closed loop.

4. Movement and Control

The crawler chassis is hydraulically driven, can travel and steer remotely, switch working modes with one button, and can be quickly deployed to different work points.

VTM Tracked Portable Sand Making Machine Plant
Model	MT60VS	MT100VS
Capacity(t/h)	100-250	200-400
Weight（t）	32	62
Sizes（mm） L×W×H	16750×3000×3400	19000×3700×4000
Belt Feeder
Volume(m3)	5	5
Size (mm)	B800*7000	B1000*8000
Discharge(mm) Height	2680	2680
Power (kw)	7.5	11
Sand Making Machine
Model	MRV0922/MVS7150	MRV1222/MVS9100
Max Feed Size（mm）	≤40mm	≤40mm
Power (kw)	160&200kw	315&400kw
Main Belt Conveyor
Model	1000*9000mm	1200*10000mm
Power (kw)	11kw	15kw
Feeding Height(mm)	2800mm	2800mm
Magnetic Separator （Optional ）
Model	RCYQ-8	RCYQ-10
Power (kw)	2.2kw	3kw
Dual-power Assembly
Driving Mode	Diesel -- electricity
Note: Product models , parameters , appearance , etc . are constantly being improved. If any modifications cause differences please refer to the actual product received.
