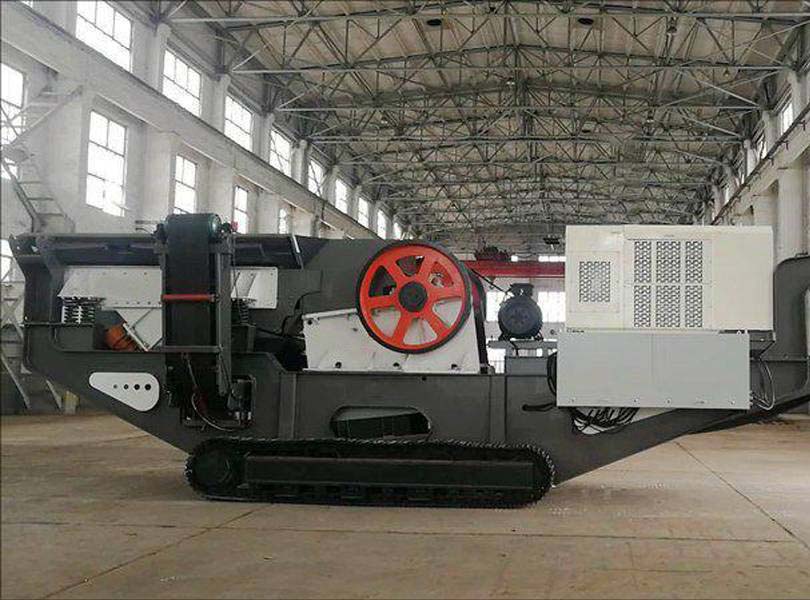

Tracked Mobile Jaw Crushing Plant

Crawler Mobile Jaw Crushing Station is a mobile crushing equipment that integrates jaw crusher, feeding system, conveying system and walking chassis. It is mainly used for material crushing operations in mining, construction waste treatment, road construction and other fields.

Its core feature is that it relies on a crawler-driven chassis to achieve rapid transfer and flexible operation, and is suitable for construction scenarios in complex terrain or that require frequent movement.

Technical Features

1. High mobility

The crawler chassis design has low ground pressure and strong climbing ability (up to 25°), making it suitable for complex terrain (such as mines and construction sites).

Flexible transfer, saving transportation time and cost, especially suitable for switching between multiple work points.

2. Integrated design

It integrates crushing, feeding, conveying and power systems, reducing on-site installation and commissioning time.

Optional diesel generator or external power supply to adapt to remote areas without electricity supply.

3. Intelligent control

The PLC control system is used to monitor the equipment operating status (such as temperature, vibration, current) in real time, and support fault warning and remote diagnosis.

The hydraulically adjustable discharge port can quickly adjust the discharge size to meet the needs of different working conditions.

4. High efficiency and energy saving

The jaw crusher adopts a deep cavity design, with a large crushing ratio (up to 10:1) and a high processing capacity (50-500 tons/hour).

Optimize power matching, reduce fuel consumption or electricity consumption, and meet environmental protection requirements.

5. Environmentally friendly noise reduction

Equipped with a spray dust removal system or closed structure to reduce dust pollution.

Low noise design meets the environmental protection standards of urban construction.

6. Safe and reliable

Emergency stop device and overload protection system ensure the safety of equipment and personnel.

Key components (such as jaw plates and bearings) are made of wear-resistant materials to extend their service life.

Application Scenario

Construction waste recycling: crush concrete and bricks on site to directly generate recycled aggregates.

Mining: Primary crushing of open pit mines to reduce ore transportation costs.

Road construction: production of sand and gravel aggregates in mountainous or remote areas.

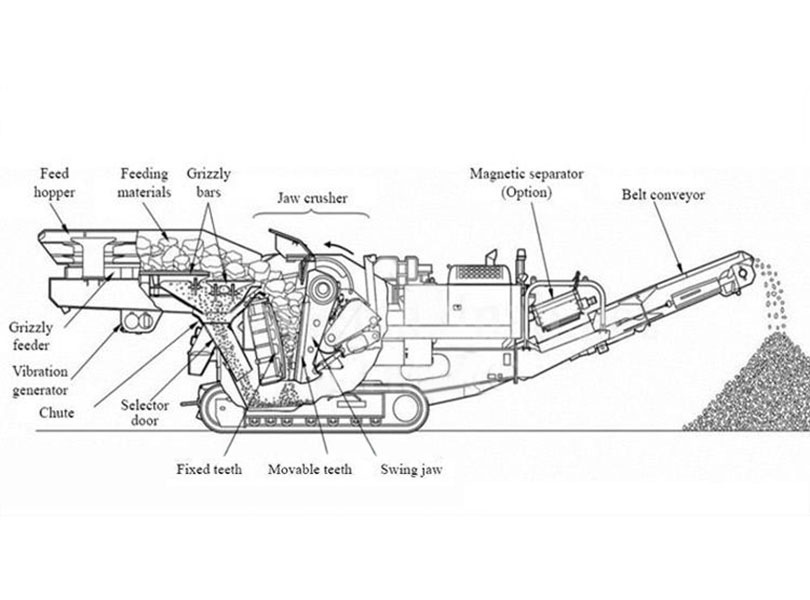

1. Feeding and crushing

The material is evenly fed into the crushing chamber of the jaw crusher through a vibrating feeder, and the movable jaw and the fixed jaw crush the material through periodic extrusion motion. The movable jaw reciprocates driven by the eccentric shaft to squeeze and crush large pieces of material into the required particle size.

2. Arrangement and sorting

The crushed materials fall through the discharge port and are output through the lower conveyor belt. Some equipment is equipped with a pre-screening function, which can directly screen out fine materials that do not need to be crushed, thereby improving efficiency.

3. Movement and transitions

The crawler chassis is equipped with a hydraulic drive system, which can move autonomously or be operated by remote control. It can adapt to rugged terrain and complete workstation switching without external traction equipment.

VTC Tracked Portable Jaw Crushing Plant
Model	TVTC96J	TVTC106J	TVTC116J	TVTC120J	TVTC1380J	TVTC130J
Capacity (t/h)	100-250	150-360	200-450	250-520	210-650	300-750
Weight (t)	32	45	52	62	63	108
L×W×H (mm)	12450×2500×3100	14000×2800×3400	15600×3000×3700	16000×3000×3700	15500×3000×3600	19500×3500×3900
Jaw Crusher
Model	C96	C106	C116	C120	C3054	C130
Max Feed edge (mm)	500	580	650	700	650	800
Motor Power (kw)	90	110	132	160	160	160
Vibrating Feeder
Model	GZT/ZSW3895	GZT/ZSW4211	GZT/ZSW4211	GZT1245	GZT1345	GZT/ZSW1345
Hopper Volume (m3)	4	5	6	7	7	10
Feeding Height (mm)	3600	3900	4000	4400	4000	5800
Motor Power (kw)	11	15	15	15	22	22
Belt Conveyor
Main Belt Conveyor (m)	B1000-12	B1000-12	B1200-13	B1200-13	B1200-13	B1200-13
Discharge Height (mm)	3200	3200	3200	3400	3400	3500
Motor Power (kw)	11	11	11	11	11	11
Side Belt Conveyor (m)	B500-3.8	B500-3.8	B500-3.8	B500-3.8	B500-3.8	B650-4
Discharge Height (mm)	1800	1800	1800	2200	2200	2500
Motor Power (kw)	3	3	3	3	3	3
Magnetic Separator（Optional）
Model	RCYQ-10	RCYQ-10	RCYQ-12	RCYQ-12	RCYQ-12	RCYQ-12
Motor Power (kw)	3	3	4	4	4	4
Dual-power Assembly
Driving Mode	Diesel — electricity
Note: Product models, parameters, appearance, etc. are constantly being improved. If any modifications cause differences, please refer to the actual product received.
